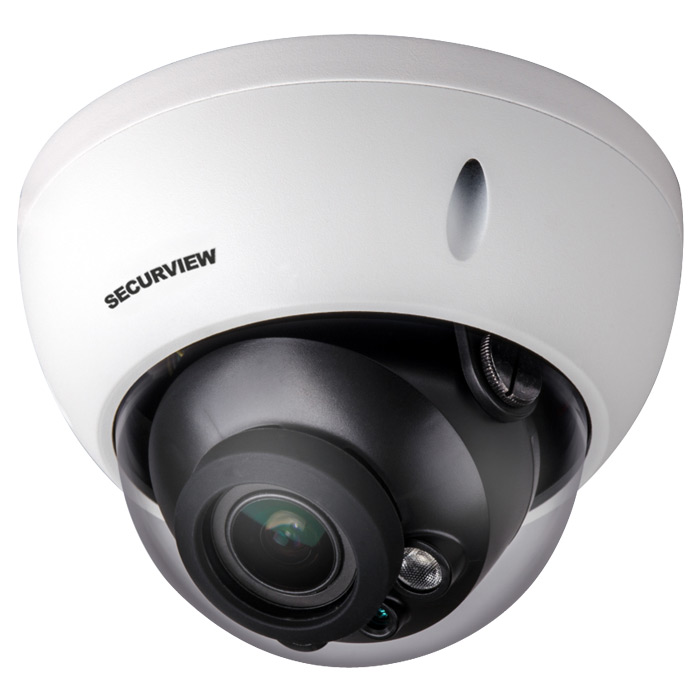

Professional Series 5.0MP WDR Motorised HDCVI Dome
Model:VSCVI-5DIRMD
Overview
The VSCVI-5DIRMD is a strong performer in all conditions. Get the perfect viewing angle with motorised varifocal lens, enjoy excellent ultra low light performance, all in a vandal / weather resistant body.
Camera features:
• Streams 5.0MP (2592 x 1944) at 20fps
• Motorised 2.7 ~ 13.5mm lens, fixed iris
• 109 ~ 29° horizontal viewing angles
• Superb colour image performance in low light at 0.005lx
• Infrared illumination up to 30m
• Auto white balance, 3D noise reduction & true WDR (120dB)
• Up to 700m HD video transmission over coax
• IP67/IK10 for weather & vandal resistance
• Dual power input 12VDC/24VAC
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via DIP switches
Camera features:
• Streams 5.0MP (2592 x 1944) at 20fps
• Motorised 2.7 ~ 13.5mm lens, fixed iris
• 109 ~ 29° horizontal viewing angles
• Superb colour image performance in low light at 0.005lx
• Infrared illumination up to 30m
• Auto white balance, 3D noise reduction & true WDR (120dB)
• Up to 700m HD video transmission over coax
• IP67/IK10 for weather & vandal resistance
• Dual power input 12VDC/24VAC
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via DIP switches
| Specifications | |
|---|---|
| Alarm Interface | N/A |
| Angle of View | 109° (wide) ~ 29° (tele) |
| Audio Input | 1 channel in |
| Camera Type | Dome |
| Category | HDCVI Surveillance |
| Day/Night | Auto (ICR) / Manual |
| Detect (25px/m) | 64m (wide) / 222m (tele) |
| Dimensions | Ø122 x 89mm |
| Effective Pixels | 2592 (H) x 1944 (V) |
| Electronic Shutter | 1/4s ~ 1/100,000s |
| Focus | Auto/Manual |
| Frame Rate | 20fps (5.0MP) / 25fps (4.0MP and lower) |
| Gain Control | Auto |
| Housing | Metal, Polycarbonate |
| Identify (250px/m) | 6m (wide) / 22m (tele) |
| Image Sensor | 1/2” 5.0 Megapixel CMOS |
| Infrared Range | 30m |
| Ingress Protection | IP67 |
| Lens | 2.7 ~ 13.5mm F1.3 Motorised Lens; Fixed Iris |
| Lens Type | Motorised Varifocal |
| Lighting Compensation | BLC / HLC / WDR (120dB) |
| Max. Resolution | 5.0 Megapixel |
| Minimum Illumination | 0.005 Lux at F1.3 (Colour) / 0 Lux IR Active |
| Mode Switching | DIP Switches |
| Modes Supported | HDCVI, AHD, HDTVI & Composite |
| Noise Reduction | 2D / 3D |
| Observe (63px/m) | 26m (wide) / 89m (tele) |
| Operating Environment | -30° to 60°C / RH90% (max) |
| OSD Menu | Support |
| Power Consumption | <11.8W |
| Power Input | 12VDC/24VAC |
| Recognise (125px/m) | 13m (wide) / 44m (tele) |
| Resolution | 5.0MP (2592 x 1944) to CIF (352 x 288) |
| Series | Professional Series |
| Signal Noise Ratio | >65dB |
| Synchronisation | Internal |
| Transmission Distance | Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions) |
| Tri-Axis Mounting | Yes |
| Vandal Resistant | IK10 |
| Video Output | 1 x HDCVI / AHD / TVI / Composite video output |
| Weight | 0.48kg |
| White Balance | Auto / Manual |
| Warranty (Years) | 4 |
