Professional Series 1080p 25x Zoom HDCVI PTZ
Model:VSCVI2MPPTZIRBV2
Overview
Every moment captured with the Securview HDCVI PTZ series. The VSCVI2MPPTZIRBV2 features superior colour rendering in low light conditions at an impressive 25x zoom distance, with rapid preset camera movement and endless 360° panning.
Camera features:
• Streams Full HD 1080p/2.0MP (1920 x 1080)
• Motorised 4.8 ~ 120mm lens, auto iris
• 59.2 ~ 2.4° horizontal viewing angles
• Up to 700m video transmission distance over coax
• Infrared illumination up to 150m
• Excellent low light colour performance at 0.005 Lux
• Endless 360° pan, with fast 400°/s pan, 300°/s tilt speed
• 2/1 alarm input/output and 1 audio input
• True WDR (120dB) & 3D digital noise reduction
• Supports HDCVI & Composite video format modes
• Switch modes via the PTZ internal DIP switches

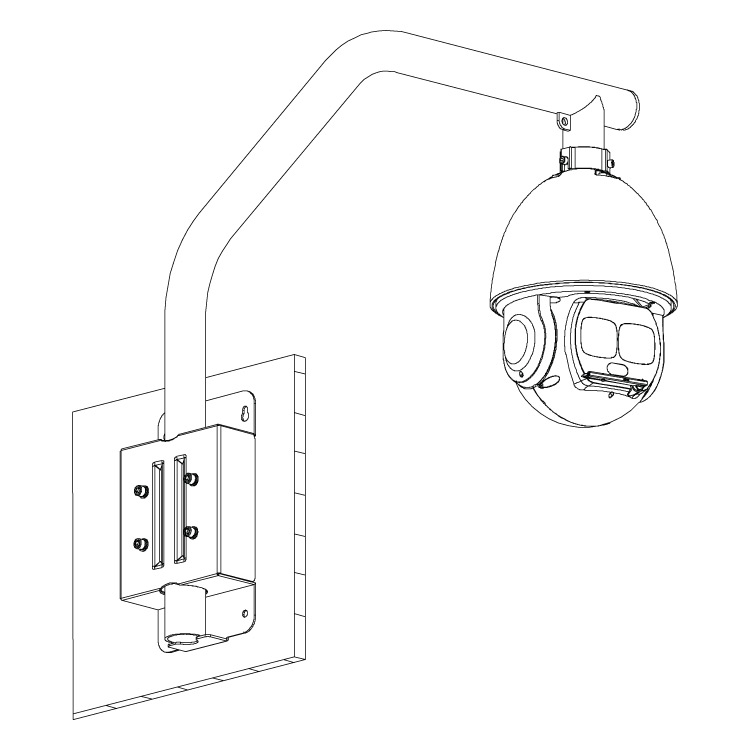

This PTZ dome camera comes standard with right angle bracket, bracket adapter and AC power supply.
Camera features:
• Streams Full HD 1080p/2.0MP (1920 x 1080)
• Motorised 4.8 ~ 120mm lens, auto iris
• 59.2 ~ 2.4° horizontal viewing angles
• Up to 700m video transmission distance over coax
• Infrared illumination up to 150m
• Excellent low light colour performance at 0.005 Lux
• Endless 360° pan, with fast 400°/s pan, 300°/s tilt speed
• 2/1 alarm input/output and 1 audio input
• True WDR (120dB) & 3D digital noise reduction
• Supports HDCVI & Composite video format modes
• Switch modes via the PTZ internal DIP switches
This PTZ dome camera comes standard with right angle bracket, bracket adapter and AC power supply.
| Specifications | |
|---|---|
| Alarm Interface | 2 channel in / 1 channel out |
| Angle of View | 59.2° (wide) ~ 2.4° (tele) (25x Optical Zoom) |
| Audio Input | 1 channel in |
| Camera Type | PTZ Dome |
| Day/Night | Auto (ICR) / Colour / B&W |
| Detect (25px/m) | 1613m |

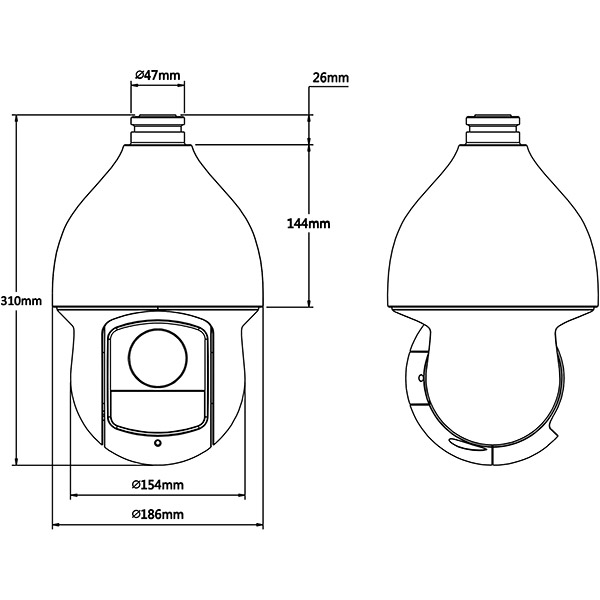

| Dimensions | Ø186 x 309mm |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Electronic Shutter | 1/3 ~ 1/300,000s |
| Focus | Auto/Manual / 1m Min. Focus Distance |
| Frame Rate | 25fps (1080p and lower) |
| Gain Control | Auto / Manual |
| Housing | Metal |
| Identify (250px/m) | 161m |
| Image Sensor | 1/2.8” 2.0 Megapixel STARVIS™ CMOS |
| Infrared Range | 150m |
| Ingress Protection | IP66 |
| Lens | 4.8 ~ 120mm F1.6 ~ F4.4 Motorised Lens; Auto Iris |
| Lens Type | Motorised Varifocal |
| Lighting Compensation | BLC / HLC / WDR (120dB) |
| Manual PTZ Speed | Pan: 0.1° ~300°/s; Tilt: 0.1° ~200°/s |
| Max. Resolution | 2.0 Megapixel |
| Minimum Illumination | 0.005 Lux at F1.6 (Colour) / 0 Lux (B&W) IR Active |
| Mode Switching | DIP Switches |
| Modes Supported | HDCVI & Composite |
| Noise Reduction | 2D / 3D |
| Observe (63px/m) | 646m |
| Operating Environment | -40° to 70°C / RH90% (max) |
| OSD Menu | Support |
| Pan/Tilt Range | Pan: 0° ~ 360° endless / Tilt: -15° ~ 90° / Auto-flip 180° |
| Power Consumption | 13W / 23W (IR active) |
| Power Input | 24VAC 3A ±10% |
| Preset PTZ Speed | Pan: 400°/s; Tilt: 300°/s |
| Presets | 300(DH-SD) / 255(Pelco-P/D) |
| Protocols | DH-SD / Pelco-P/D (Auto Recognition) |
| PTZ Modes | 5 Pattern / 8 Tour / Auto Pan / Auto Scan |
| Recognise (125px/m) | 323m |
| Resolution | 1080p (1920 x 1080) to CIF (352 x 288) |
| RS485 | 1 input |
| Series | Professional Series |
| Signal Noise Ratio | > 55dB |
| Synchronisation | Internal |
| Transmission Distance | Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions) |
| Tri-Axis Mounting | Yes |
| Vandal Resistant | No |
| Video Output | BNC CVI HD output / Composite SD output (switchable) |
| Weight | 3.5kg |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Warranty (Years) | 4 |
