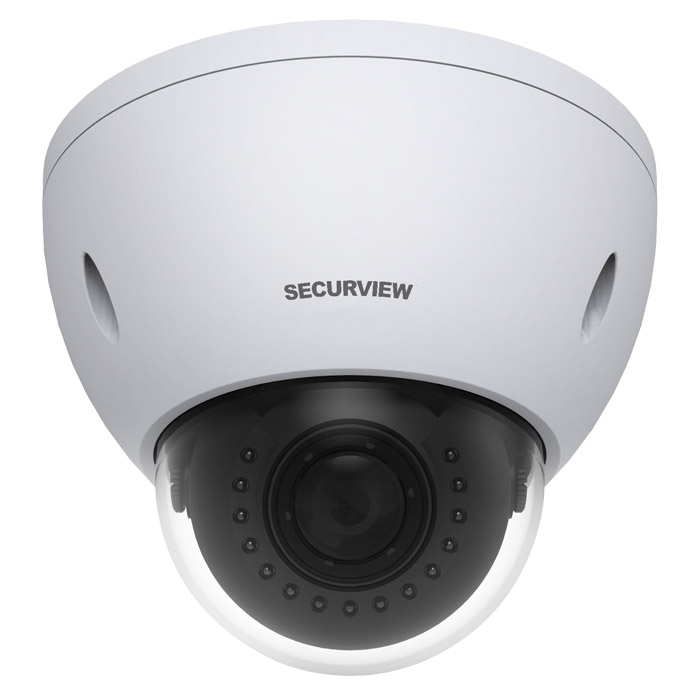

Ultimate Series 1080p Motorised HDCVI Dome
Model:VSCVI2MPVDIRM30M
Overview
The best of the Securview Victory Series: this motorised HDCVI dome camera makes light work of analogue-to-Full-HD upgrade installs.
Mount now and adjust later with the motorised varifocal lens and experience unparalleled ease of use with dual voltage (12VDC/24VAC) and a switchable video output functionality.
Like other cameras in the Ultimate range, this camera has all the professional features you require including auto-iris motorised lens, alarm and audio interfaces, and 50m maximum infrared illumination distance for strong low-light performance.
Mount now and adjust later with the motorised varifocal lens and experience unparalleled ease of use with dual voltage (12VDC/24VAC) and a switchable video output functionality.
Like other cameras in the Ultimate range, this camera has all the professional features you require including auto-iris motorised lens, alarm and audio interfaces, and 50m maximum infrared illumination distance for strong low-light performance.
| Specifications | |
|---|---|
| Alarm Interface | 1 channel in / 1 channel out |
| Angle of View | 93° (wide) ~ 35° (tele) |
| Audio Input | 1 channel in |
| Backlight Compensation | BLC |
| Camera Style | Vandal Resistant Dome |
| Camera Type | Dome |
| Day/Night | Auto (ICR) / Colour / B&W |

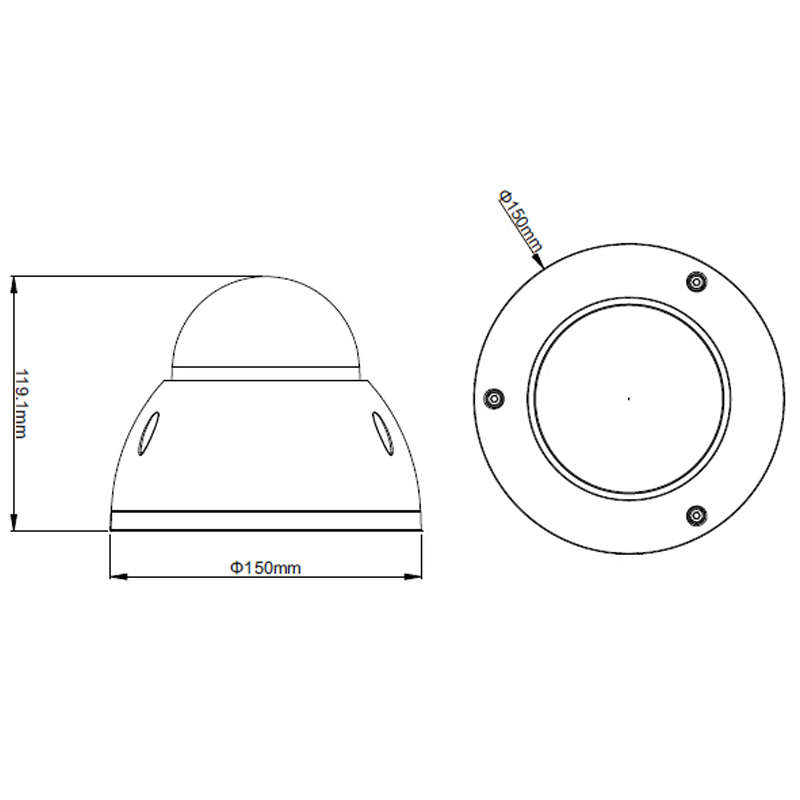

| Dimensions | Ø150 x 119mm |
| Effective Pixels | 1984 (H) x 1225 (V) |
| Electronic Shutter | 1/3 ~ 1/100,000s |
| Frame Rate | 25fps (1080p and lower) |
| Gain Control | Auto |
| HD/SD Switchable | Yes |
| Image Sensor | 1/2.8” 2.4 Megapixel CMOS |
| Ingress Protection | IP66 |
| Lens | 2.7 ~ 12mm Motorised Lens; Auto Iris |
| Lens Type | Motorised Varifocal |
| Max. Resolution | 1080p Full HD |
| Maximum Infrared Range | 50m |
| Minimum Illumination | 0.05 Lux at F1.2 (Colour) / 0 Lux IR Active |
| Noise Reduction | 2D / 3D |
| Operating Environment | -30° to 60°C / RH95% (max) |
| OSD Menu | Support |
| Power Consumption | < 8.4W |
| Power Input | 12VDC / 24VAC |
| Resolution | 1080p (1920 x 1080) to CIF (352 x 288) |
| Signal Noise Ratio | > 50dB |
| Synchronisation | Internal |
| Transmission Distance | Over 500m via 75-3 coaxial cable |
| Tri-Axis Mounting | Yes |
| Vandal Resistant | IK10 |
| Video Compression | H.264 / MJPEG |
| Video Output | BNC CVI HD output / CVBS SD output (switchable) |
| Weight | 0.80kg |
| White Balance | Auto |
| Warranty (Years) | 4 |
